Overview

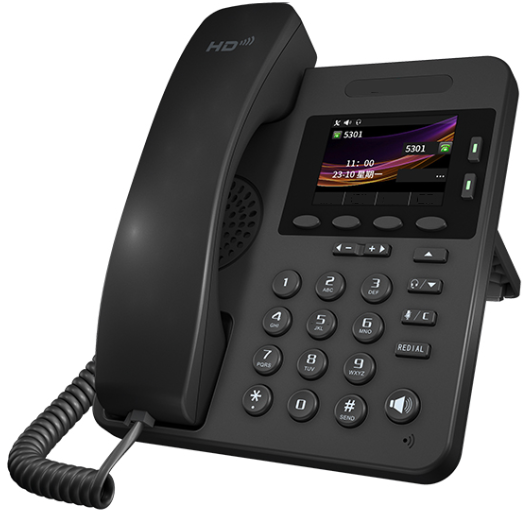

IPTone-270PC

Phone Features
2 SIP accounts, MWI(Line1)
Call hold, Call waiting, Call forward, Call return; Call transfer (blind/busy/ask)
Caller ID display, Redial, Mute, DND
Auto-answer, 3-way conferencing
Speed dial, SMS, Voicemail
Tone scheme, Volume control
Direct IP call without SIP proxy
Ring tone selection/import/delete
Black list, Hand-free indicator.
Call history: dialed/received/missed;
Soft keys programmable, Supports PC control
Multi-Language: Chinese, English, French,

Datasheet Get Quote

Advanced Features

5 programmable keys

XML Phone Book search and input & output

Enterprise phone book (800 entries)

Personal Phonebook (300 entries)

LDAP phone book

IP PBX System Integration

Busy lamp field (BLF), BLF list

Bridged line appearance (BLA)

DND & Forward synchronization

Intercom, Paging, Music on hold

Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection

Network conference, Distinctive ring tone

Security

VLAN QoS (802.1pq), SRTP

Transport Layer Security (TLS)

Digest authentication using MD5/MD5-sess

Secure configuration file via AES encryption

Encryption for configuration file

Phone lock for personal privacy protection

Admin/User 2-level configuration mode , LLDP, CDP

L2TP VPN tunneling protocol – added

Specification

Network Features

SIP v1 (RFC2543), v2 (RFC3261)

SIP connection: Proxy mode & Peering Points mode;

SRTP voice encryption(RFC3711)

Redundant server support

NAT Traversal: STUN mode

DTMF: In-Band, RFC2833, SIP Info, Auto

HTTP Web Management

IP Assignment: Static/DHCP/PPPoE

Bridge/Router mode for PC port

TFTP/DHCP/PPPoE client

Telnet/HTTP/HTTPS server, DNS client, NAT/DHCP server

Codes and Voice Features

Wideband Codec: G.722

Narrowband codec: G.711μ/A, G.726, G.729AB, iLBC

VAD, CNG, AEC, AGC, Full-duplex,

Management

Auto-provision via FTP/TFTP/HTTP/HTTPS

Configuration: browser/phone/auto-provision

Trace package and system log export

Optional Feature

TR069，IPv6，HTTPS web management，802.1x，OPEN VPN

Physical Features

128*64 graphic LCD with back light

25 keys, including 5 programmable keys,

2 LEDs: 2* account lights, including MWI(L1)

1* RJ9 handset port

2xRJ45 10/100M Ethernet ports

Power adapter: AC 100~240V input and

DC 5V/1A output

POE, IEEE 802.3af, class 0(Option)

Power consumption: 1.5W

Net weight: 0.62kg

Dimension: 180x157x33mm

Operating humidity: 10~95%

Storage temperature: up to 60°C
