TR-S3900-Series

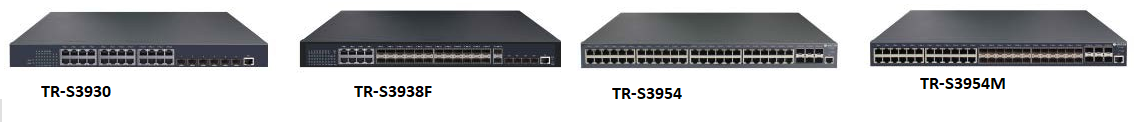

Techroutes S3900 Series is a new generation of aggregation 10G switches introduced by Techroutes Network Pvt Ltd. It is targeted at the IP MAN (metropolitan area network), campus networks and enterprise networks. It is developed on the basis of high performance hardware and TRROS – software platform with Techroutes own independent intellectual property rights. It supports multiple services like IPv6, MPLS, VPN and network security based on L2/L3/L4 wire-speed switching service. It also supports nonstop upgrade, continuous forwarding, graceful restarting and redundancy protection. Techroutes S3900 Series has 4 models: TR-S3930, TR-S3938F, TR-S3954 and TR-S3954M. It supports up to 48 gigabit ports and 6 10GE ports.

Datasheet Get Quote

Product Characteristics

Carrier-Level QoS Policies

Supports priority retagging and complicated flow classification based on VLAN, MAC, source address, destination address, IP or priority to better streamline carrier’s services. Supports flexible bandwidth control policies and supports port-/flow based flow limit, and ensuring the line speed forwarding of each port to make sure the high quality of video, audio and data services. Supports 8 priority queues by each port. Supports multiple queue schedule algorithms such as SP, WRR, or “P plus WRR”

Innovative virtual Cluster Switching Technique

TVSS(Techroutes Virtual Switch System):

Virtualize multiple physical devices into one. The performance, reliability and management of the virtual system are superior to the physical ones.

Improved Performance: TRVSS makes full use of each link in the physical devices, which avoids STP blocking the link and protects the original link to the maximum extent;

High Reliability: Based on the advanced distribution mechanism and efficient cross-physical link aggregation link function, the logic control plane, service control plane and service data plane are separated. Thus, the device can support continuous layer3 routing forwarding, avoiding service interruption as a result of a single point of failure; Easy Management: TRVSS realizes single IP management, greatly improving the networking efficiency and lowering the operating cost.

Easy Management: TRVSS realizes single IP management, greatly improving the networking efficiency and lowering the operating cost.

Versatile IPv6 Solution

TR-S3900 Series supports the IPv6 protocol suite, IPv6 neighbour discovery, ICMPv6, path MTU discovery, DHCPv6, etc.; TR-S3900 Series supports Ping, Traceroute, Telnet, SSH, ACL based on IPv6; TR-S3900 Series supports MLD, MLD Snooping, IPv6 static routing, RIPng, OSPFv3 and BGP4+, etc.; Supports IPv6 tunnel: manual tunnel, automatic tunnel, GRE tunnel, 6to4 tunnel, ISATAP; TR-S3900 Series supports IPv4 transiting to IPv6: IPv6 manual tunnel, automatic tunnel, 6 to 4 tunnel, ISATAP tunnel.

Varied Service Characteristics

Supports layer-2 and layer-3 multicast routing protocol, which enable the device can access to IPTV, HD video surveillance and HD video conference. Supports layer-3 routing protocol and super-large routing table capacity, which enables the device is available in large campus networks, enterprise networks and industry networks. Supports MPLS multi-VRF and layer-2 VPN.

Industrial Ethernet Ring with Zero Delay and Zero Packet Loss

Supports industry-level EAPS and ERPS, and their protection recovery time is less than 50ms. Their high reliability is represented by the null packet loss, which has been proved by many years of application in the Grid, rail transportation and defense systems.

Complete Security Mechanism

Equipment-Level Security: The advanced hardware infrastructure design realizes the level-based packet schedule and packet protection, prevents DoS-/TCP related SYN Flood, UDP Flood, Broadcast Storm or large traffic attacks, and supports level-based command line protection, endowing different levels of users with different management permissions. Security Authentication Mechanism: IEEE 802.1x, Radius and TRTacacs+ Enhanced Service Security Mechanism: supports the plaintext or MD5 authentication of relevant routing protocol, URPF, deep inspection of hardware packet, control packet and data packet and filtering technology.

Innovative Energy-Saving Design

Intelligent power management: The power system of TR-S3900 series supports real-time monitoring the device and the slow-start. It is also power-saving. Intelligent fan management system: The fan systems of S3900 Series supports automatic speed regulation, which efficiently slow the fan speed and mitigate the noise. Complies with the international standard IEEE 802.3a.

Flexible and Convenient Management and Maintenance

Supports management modes such as the console ort, Telnet, SSH, etc. Supports the WEB management mode, which is easy and efficient so that it makes installation and debugging convenient. Supports TFTP- patterned file upload/download management. Supports ISSU (In-Service Software Upgrade).

Technical Specification

Item			TR-S3930	TR-S3938F	TR-S3954	TR-S3954M
Interface			24xGETX ports,6x10GE/G E SFP+ ports	24xGESFPports, 8xGE TX 6x10GE/GESFP+ ports	48xGETX ports,6x10GE/GE SFP+ ports	24xGE TX ports, 24xGE SFP ports 6x10GE/GESFP+ ports
Console			1RJ45 console	1RJ45 console	1RJ45 console	1RJ45 console
Backplane			216Gbps	216Gbps	216Gbps	216Gbps
Forwarding rate			126Mpps	138Mpps	162Mpps	162Mpps
Chassis		Dimensions(Wx DxH)(mm)	440x350x44	440x350x44	440x350x44	440x350x44
Package		Dimensions(Wx DxH)(mm)	576x448x94	576x448x94	576x448x94	576x448x94
Power consum ption		Full Load	75W	75W	75W	150W
Power supply (hot- swap)		AC: 100V- 240V,50Hz±10%	Support	Support	Support	Support
Power supply (hot- swap)		DC:-36V-72V	Support	Support	Support	Support
Total output BTU (1000BTU/H=293W)			255.97	255.97	255.97	255.97
Noise@25°C（dBA)			45	45	45	45
MTBF(H)			>100,000	>100,000	>100,000	>100,000
Forwarding mode			Store-forward	Store-forward	Store-forward	Store-forward
Flash(MB)			32	32	32	64
DRAM(MB)			256	256	256	256
MAC			32K	32K	32K	32K
Buffer Size(MB)			2	2	2	2
Jumbo frame			9K	9K	9K	9K
Routing table	IPv4		12K	12K	12K	12K
	IPv6		8K	8K	8K	16K
ARP table	IPv4		12K	12K	12K	12K
	IPv6		2K	2K	2K	2K
Total SVI			1K	1K	1K	1K
VLAN			4K VLAN,MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN,802.1Q
Spanning Tree			802.1D(STP),802.1W(RSTP)and802.1S(MSTP)
			BPDU guard ,root guard and loopback guard
Multicast			IGMPv1/v2/v3,IGMPSnooping,IGMPFastLeave,
Routing protocols			Static Routing, RIPv1/v2, OSPFv2, OSPFv3, BGP4, BGP4+, PBR, LPM Routing,
			ECMP, VRRP, Multicast routing, PIM-SM, PIM-DM.
IPv6			ICMPv6,DNSv6,ACLv6and IPv6 PBR, IPv6 VRRPv3
			IPv6 Multicast VLAN, PIM-SM/DM for IPv6, IPv6 QOS DHCP Server/Client
			MLDV1/V2,MLDsnooping
			IPv6StaticRouting,RIPng,OSPFv3, BGP4+.IPv6 Management Features
			Manualtunnel,ISATAPtunnel,6to4tunnel,
MPLS			LDP protocol, Multi-VRF,
			MPLSL2VPN
QoS			CAR, HQoS , MAC/IP/TCP/UDP/VLAN/COS/DSCP/TOS based QoS, 802.1P/DSCP
			Priority re-labeling ,SP, WRR, WDRR Tail-Drop, WRED, flow monitoring and Traffic shaping
			Qos – 8 Queues Per Port for uncast & 4 Queues Per Port for multicast
Security			Port isolation , Port security ,and “IP+MAC+ port” binding ,DHCP Client,
			DHCP Relay, DHCP Server, DHCP Snoopingandoption82,,
			IEEE802.1x,RadiusandTacacs+, ARP Binding, AAA,
			IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL, Time range ACL, VLAN ACL
			Flood,UDPFlood,etc.Broadcast/multicast/unknownunicaststorm-control
			MD5,SHA-256,RSA-1024,AES256,etc.
Reliability			Static/LACP link aggregation ,Interface backup
			TRVSS, virtual-stacking
			EAPS and ERPS
			URPF,LLDP,ISSU
			VRRP
			1+1powerbackup,DyingGasp
Management			Console,Telnet,SSHv1/2,HTTP, HTTPS ,Web, CLI
			SNMPv1/v2c/v3, RMON 1,2,3,9.
			TFTP ,FTP ,SFTP ,Radius Authentication Syslog (Int & Ext)
			SNTP/NTP,SPAN, RSPAN , SFlow, Dual Firmware Images and Configuration Files
Environment			Operating temperature/humidity:0℃-50℃,10%-90%non-condensing
			Storage temperature/humidity:-20℃-70℃,5%-95%non-condensing

Product Order Information:

Item

Description

TR-S3900 Series

TR-S3930

Ethernet routing switch with 24GE and 6 10GE ports ( 1 RJ45 console port ,24 GE TX ports, 6 10GE/GE SFP+ ports; 2 power slots with 1 hot-swap AC220V

Power supply ;the coolingfan,1U,standard 19-inchrack-mounted installation

TR-S3938F

Ethernet routing switch with 32GE and 610GE ports(1RJ45 console port,24 100M/1000M SFP ports, 8 GE TX ports, 6 10GE/GE SFP+ ports; 2 power slots with 1 hot-swap AC220V power supply; the cooling fan, 1U, standard 19-inch

rack-mounted installation)

TR-S3954

Ethernet routing switch with 48GE and 6 10GE ports ( 1 RJ45 console port,48 GE TX ports, 6 10GE/GE SFP+ ports; 2 power slots with 1 hot-swap AC220V

powersupply;thecoolingfan,1U,standard19-inchrack-mountedinstallation)

TR-S3954M

Ethernet routing switch with 48GE and 6 10GE ports ( 1RJ45 console port ,24 GETX ports, 24 100M/1000M SFP ports,6 10GE/GESFP+ports;2 power slots with 1 hot-swap AC220V power supply; the cooling fan, 1U,standard 19-inch

rack-mounted installation)

Item	Description
TR-S3900 Series Power Module
PWR-75-AC	Hot-swap AC Power for TR-S3930/TR-S3938F/TR-S3954(Max Power 75W,AC100~240V input)
PWR-75-DC	Hot-swap DC Power forTR-S3930/TR-S3938F/TR-S3954(Max Power75W,DC- 36V~ -72V input)
PWR-150-AC	Hot-swap AC Power forTR-S3954M(Max Power 150W, AC100~240V input, The Isolated cooling fan)
PWR-150-DC	Hot-swap DC Power for TR-S3954M(Max Power 150W,DC-36V~-72V input, The isolated cooling fan)

Datasheet Usermanual

Download
